Adaptable Screening for Any Environment
The SecurOS® UVSS enhances vehicle screening by providing advanced hardware and software modules that are unified in a single ecosystem.
We offer four distinct UVSS deployment options – Essential, Pro, Elite, and Mobile – to meet varying operational requirements.
Technology & Workflow

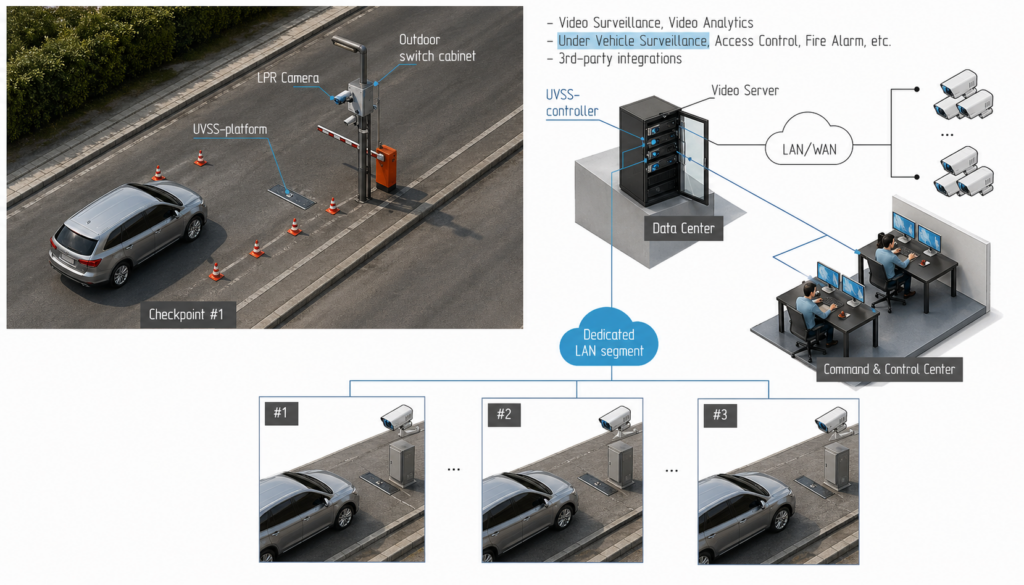

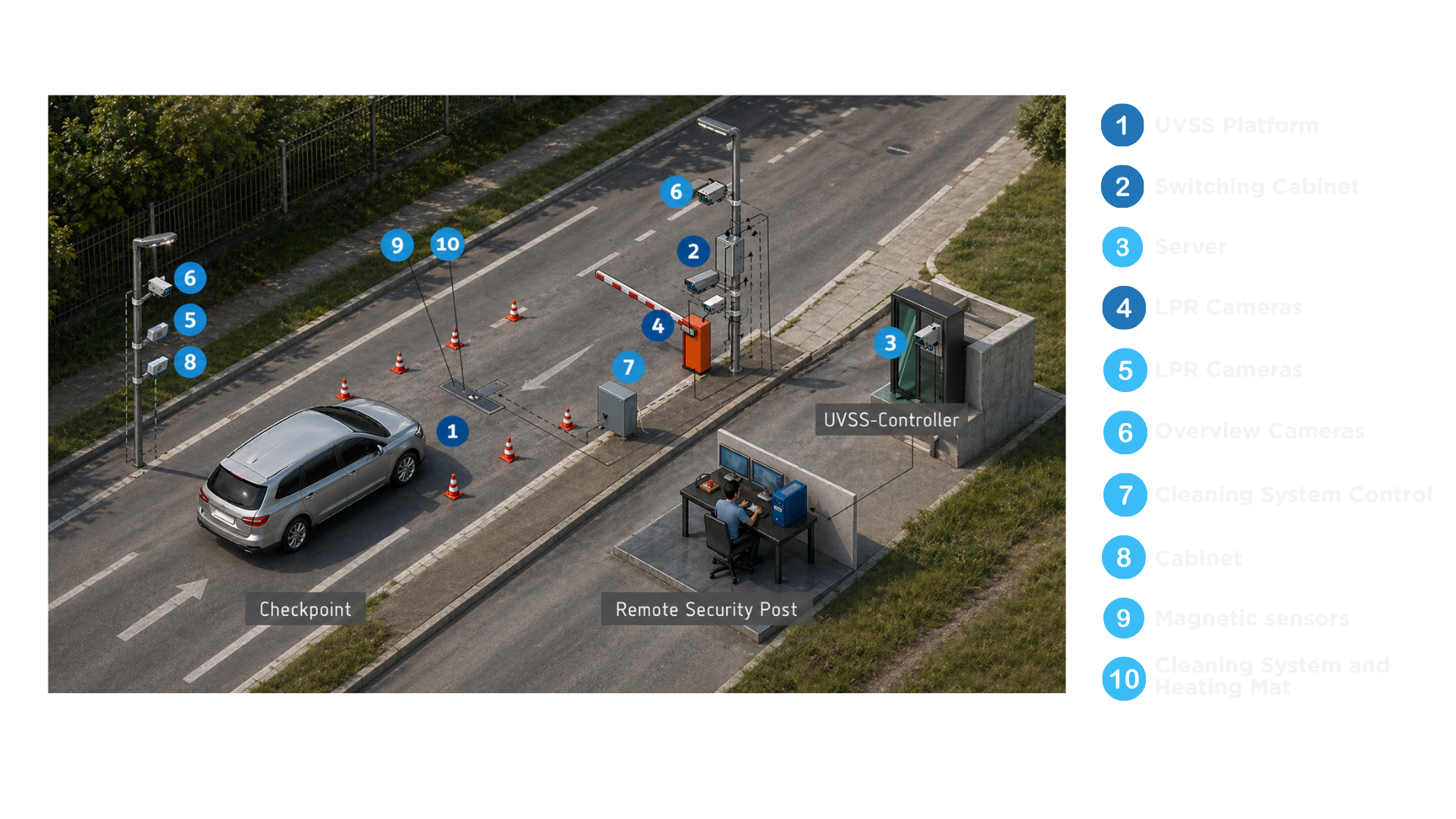

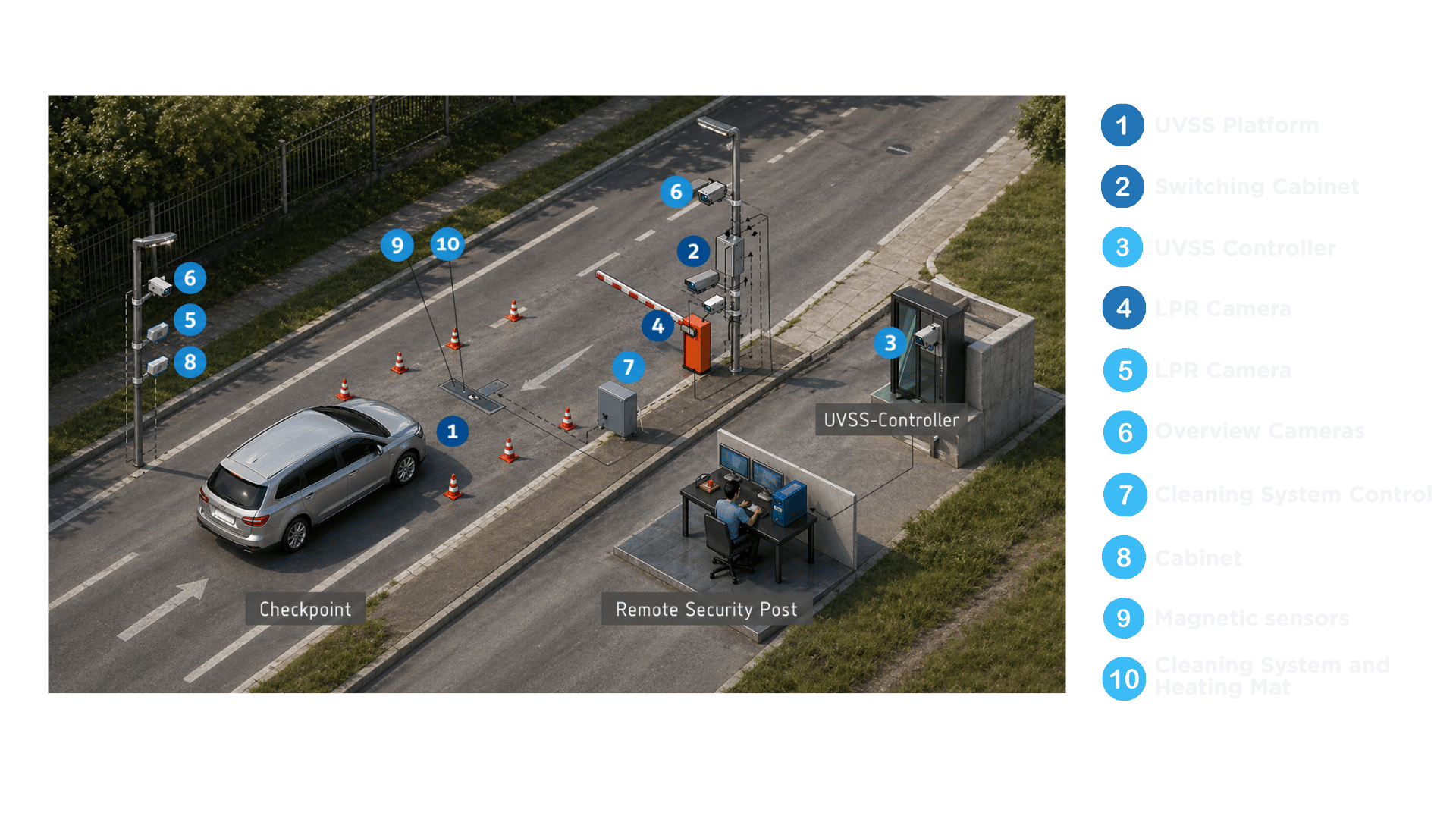

Every SecurOS® UVSS checkpoint works as one integrated system. As a vehicle drives over the UVSS platform, LPR and overview cameras identify it, and every image and plate read flows through the switching cabinet to the UVSS Controller — and on to the operator at the security post, who decides.
- 1UVSS Platform
- 2Switching Cabinet
- 3UVSS Controller
- 4LPR Camera
- 5LPR Camera
- 6Overview Cameras
- 7Cleaning System Control
- 8Cabinet
- 9Magnetic Sensors
- 10Cleaning System and Heating Mat
UVSS Solution Components
UVSS platform
LPR/ANPR and overview cameras
UVSS controller
The UVSS Controller can also be used as a client workstation.
Operator workstation (optional)
Accompanying checkpoint infrastructure
Cleaning System 2.0, trench- or surface-mounted: automatic/manual dome cleaning with cleaning fluid and pressurized air drying, keeping the imaging surface clear in all weather and environmental conditions.
UVSS platform heating system (optional)
Heating System 1.0 for UVSS 2.5/2.9 platforms: automatic platform heating for clearing ice and snow.
SecurOS® UVSS database replication engine for centralized monitoring of vehicles passage.
Synchronizes vehicle passage records across checkpoints for centralized monitoring, search and audit from one location.
Additional overview camera(s) to monitor the checkpoint.
Optional cameras give operators a wider view of the checkpoint, from vehicle approach to exit, alongside each undercarriage scan.
A SecurOS® UVSS for Every Need

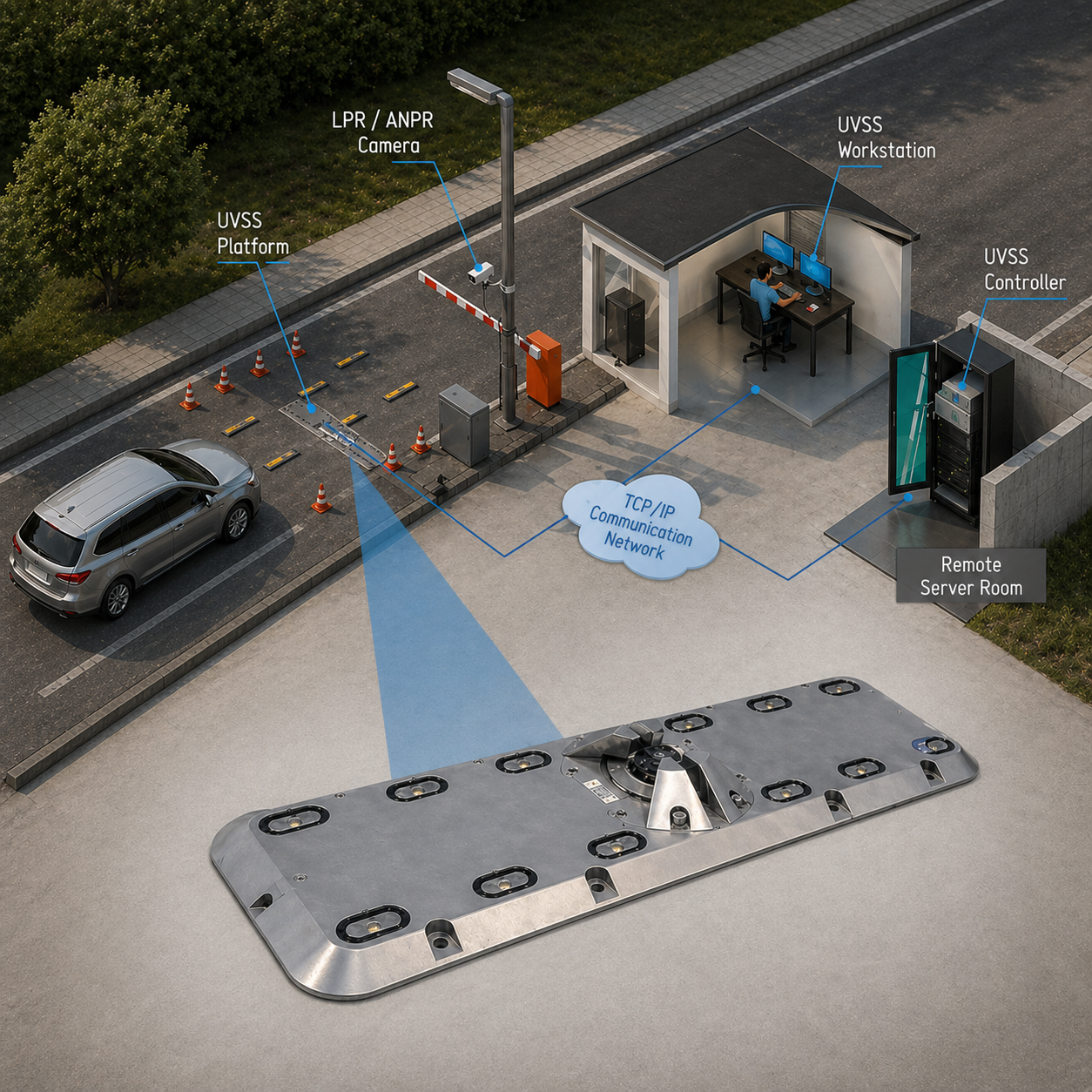

A robust, efficient solution for single-point-entry facilities, delivering the core capabilities of the SecurOS® UVSS platform with simple deployment and ease of use.
- Stand-alone checkpoint: 1 UVSS platform, 1 controller, 1 LPR camera
- Up to 100 FPS; Stop & Go up to 15 km/h (10 mph)
- Included: LPR/ANPR, Color, Make and Model Recognition, vehicle classification, zoom
- Optional: NN/AI foreign object detection, reference image comparison with visual suspicious zones, 3D Magnifier, overview camera

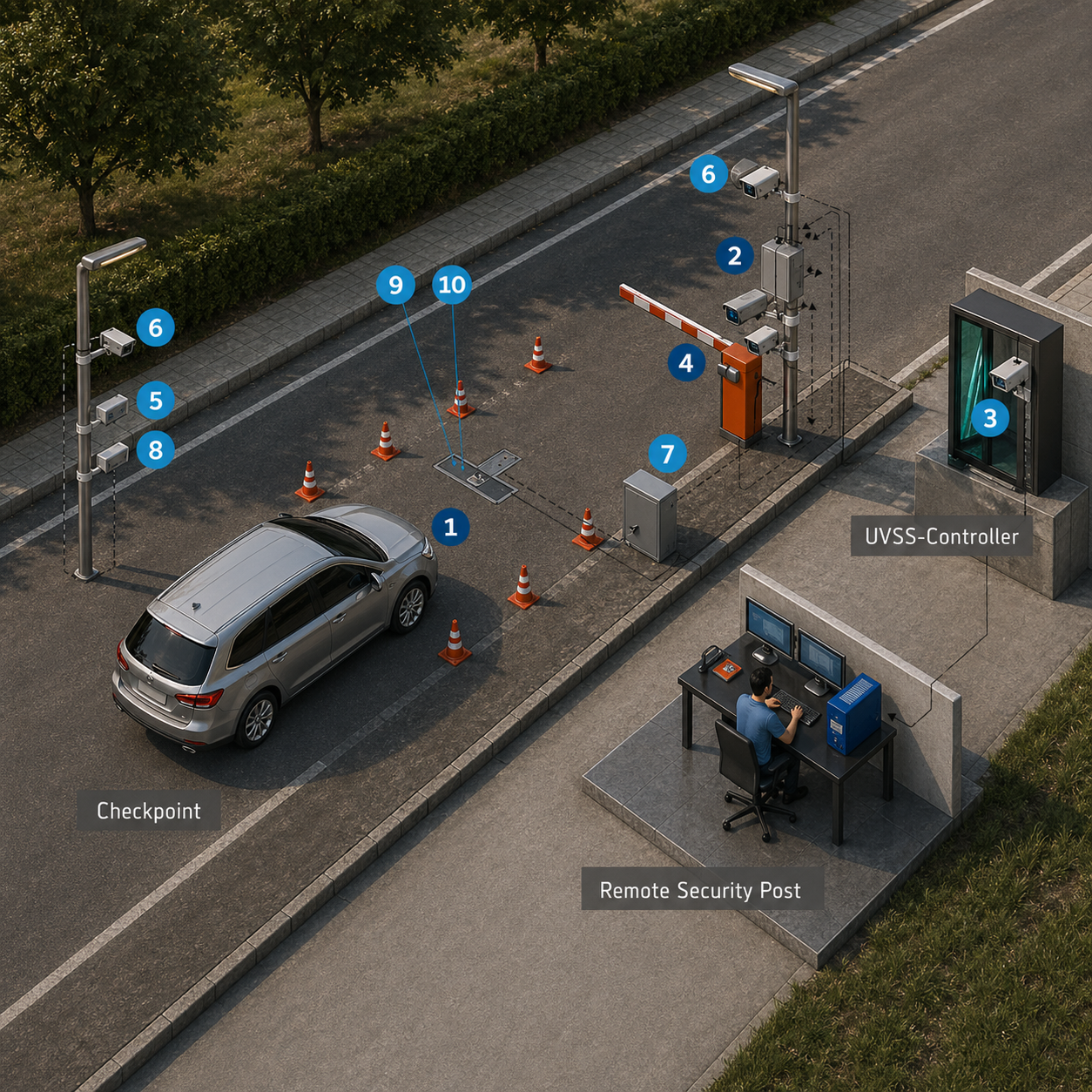

Flexibility and an individual approach: SecurOS® UVSS Pro combines a strong core package with optional modules, so the system adapts to any checkpoint.
- Up to 200 FPS; speeds up to 35 km/h (22 mph)
- Up to 2 platforms per controller; up to 3 checkpoints per system
- Included: distributed architecture, database synchronization, Command Center integration, visual suspicious zones, 3D Magnifier
- Optional: NN/AI foreign object detection, magnetic sensors, driver face recognition, access control, failover, cleaning and heating systems

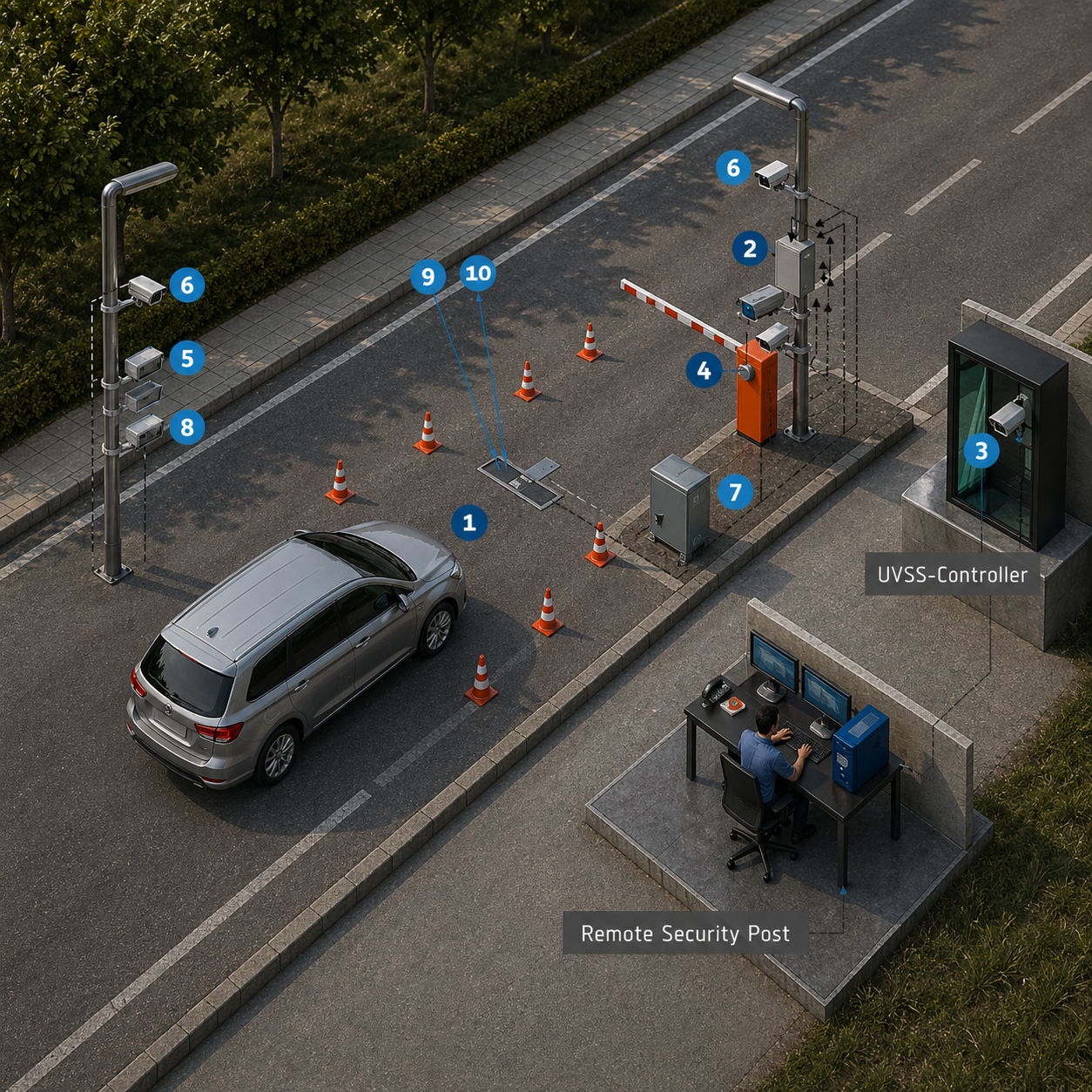

All inclusive: SecurOS® UVSS Elite includes NN/AI foreign object detection, magnetic sensors, failover clustering and high-speed processing up to 50 km/h (31 mph) on the UVSS 2.9 Elite Platform (Flat).
- Up to 1000 FPS (2.9 Flat) or 200 FPS (2.5)
- Unlimited checkpoints in one distributed system
- Included: NN/AI foreign object detection, magnetic suspicious zones, Failover Cluster / 1 to 1 Failover, general view camera license
- Optional: driver face recognition, access control, GIS, third-party integrations, cleaning and heating systems

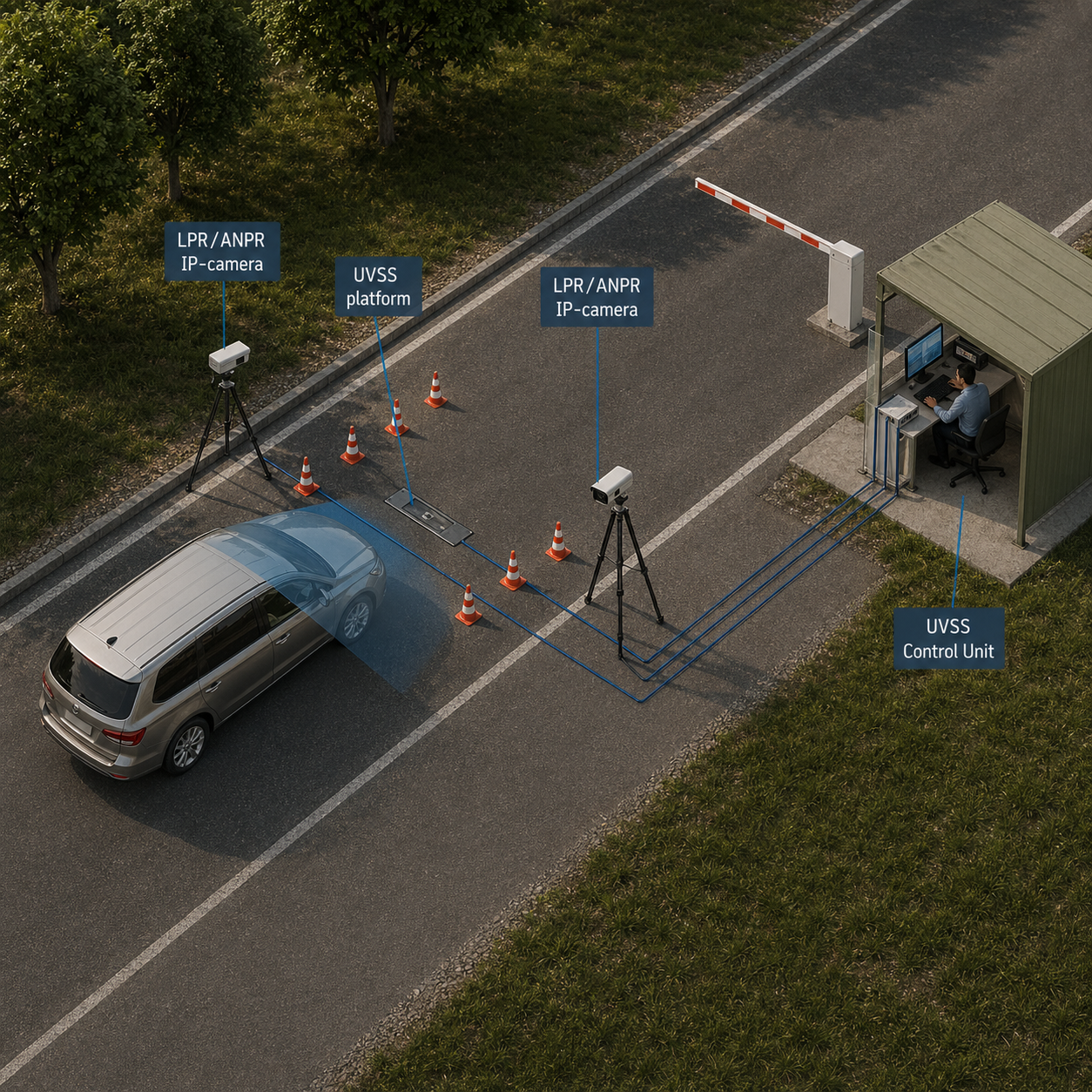

Built for public events, stadiums and temporary security checkpoints, SecurOS® UVSS Mobile ships in wheeled Pelican cases and deploys in up to 30 minutes with no construction work.
- Up to 200 FPS; speeds up to 35 km/h (22 mph)
- 1 checkpoint per deployment
- Included: NN/AI foreign object detection, magnetic sensors and maps, 3D Magnifier, LPR/ANPR and CMMR
- Optional: road deployment kit, tents, mobile operator workplace
